Senjak Market

Published on April 28th, 2010

location:Belgrade | size:7200m2 | status:competition

Senjak

The idea is to reclaim a segment of the city territory previously occupied by infrastructure and to create a new green zone instead. The area under the railway bridge is to be planted and opened for public. New pedestrian routes are cutting across this territory to provide for better connectivity and easier access to public transportation.

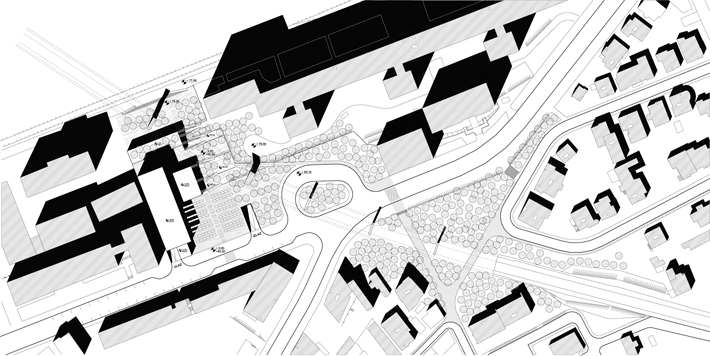

SenjakSitePlan

The new square is planed as an extension of the existing pedestrian route cutting across the terrain over the height difference of eight meters to connect two main streets in the area. Series of smaller plateaus form complementary public space for gathering, play and rest. Building’s configuration takes advantage of the sloping terrain and relates to external pedestrian route.

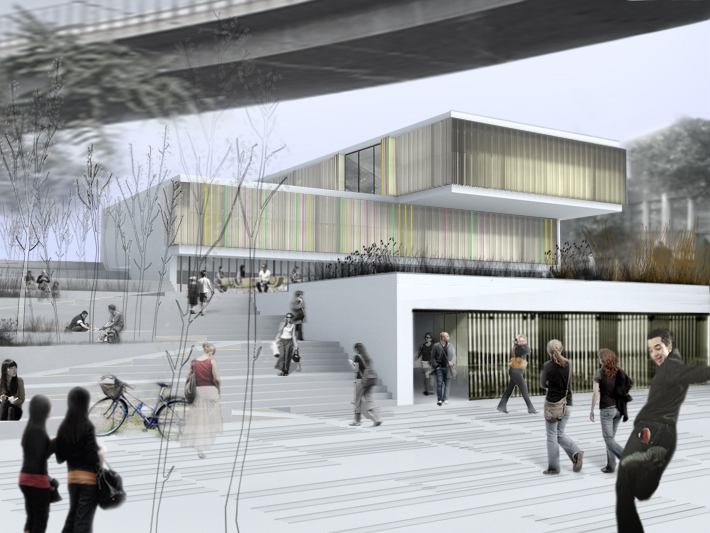

SenjakRnderLowerView

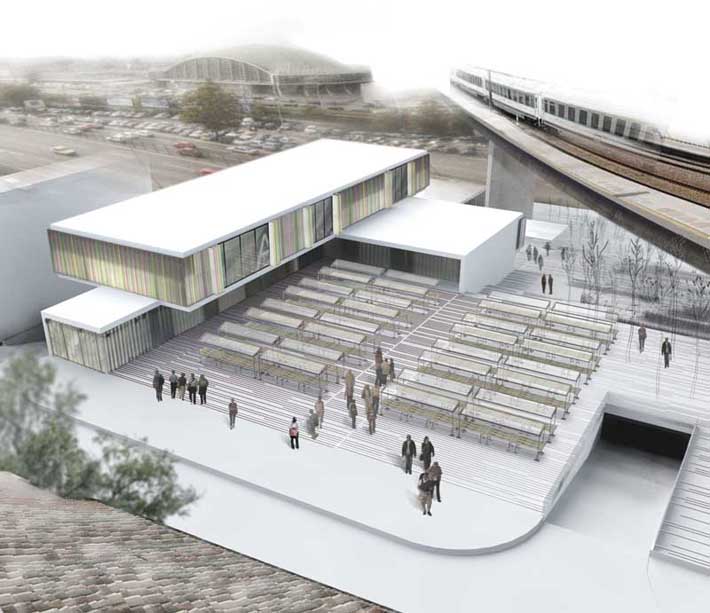

A total of 1500m2 surface area is distributed across four levels. Above ground, and L shaped volume of the building is shielding the market square from neglected office blocks and contains amenities and vertical communication cores. First underground level is reserved for loading and services while its front side contains shops facing public plateau. Second underground level occupied by the public garage with an easy access to the lower street level. Additional commercial space is located at the front of this level.SenjakRenderHigherView


credits///design: 4of7///Milutin Cerovic, Ivana Damjanovic, Stanislava Predojevic, Vladimir Pavlovic, Djordje Stojanovic
